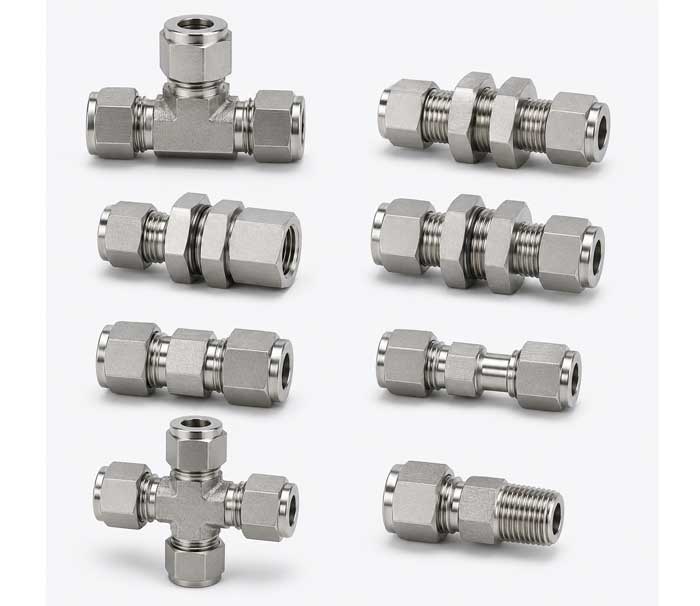

SS 316L Instrumentation Tube Fittings Manufacturer, Supplier and Exporter in India
Arrotop is a manufacturer, supplier and exporter of SS 316L Instrumentation Tube Fittings for chemical plants, water treatment systems, pharmaceutical equipment, analyser panels, process skids and welded instrumentation assemblies.
Our range includes SS 316L Compression Tube Fittings, single ferrule fittings and double ferrule tube fittings for connecting tubing with gauges, valves, manifolds, filters, regulators, transmitters and process equipment.
SS 316L is commonly ordered as UNS S31603 / EN 1.4404. It is the low-carbon version of SS 316 and is widely used for welded process equipment and fabricated stainless steel systems. EN 1.4435 is another grade within the 316L family and should be mentioned separately when required by the project.
Arrotop supplies standard fittings as well as custom products manufactured from drawings, samples or required dimensions.
SS 316L Fittings for Welded Process Systems
SS 316L is commonly chosen for instrumentation systems that form part of welded piping, fabricated skids, tanks, vessels and stainless steel equipment.
Typical requirements include:
- Welded chemical dosing skids
- Process sampling panels
- Water treatment assemblies
- Pharmaceutical process equipment
- Filter and regulator panels
- Valve and manifold hook-ups
- Instrument connections on tanks and vessels
- Fabricated analyser systems
- OEM stainless steel equipment
The low-carbon grade is particularly useful where welding forms part of the equipment construction. Outokumpu identifies 316L/4404 as a low-carbon molybdenum-alloyed stainless steel used across process industries and corrosive environments.
Arrotop is a manufacturer, supplier and exporter of SS 316L tube fittings for welded instrumentation systems in standard and custom configurations. Send the fitting list, drawing, tube size and quantity for price and availability.
Available SS 316L Compression and Ferrule Fittings
Arrotop manufactures SS 316L fittings in tube-to-tube, tube-to-thread, reducing and bulkhead configurations.
Available products include:
- SS 316L Male Connectors
- SS 316L Female Connectors
- SS 316L Union Connectors
- SS 316L Male Elbows
- SS 316L Female Elbows
- SS 316L Union Elbows
- SS 316L Male Run Tees
- SS 316L Female Run Tees
- SS 316L Male Branch Tees
- SS 316L Female Branch Tees
- SS 316L Union Tees
- SS 316L Bulkhead Male Connectors
- SS 316L Bulkhead Female Connectors
- SS 316L Bulkhead Unions
- SS 316L Straight Unions
- SS 316L Reducing Unions
- SS 316L Union Crosses
- SS 316L Reducer Port Connectors
- SS 316L NPT Male Adapters
- SS 316L BSPT Couplings
- SS 316L BSPP Plugs
- SS 316L Front and Back Ferrules
- SS 316L Tube Caps and Tube Plugs
Both Grade 316L Stainless Steel Single Ferrule Fittings and SS 316L Double Ferrule Tube Fittings are available for imperial and metric instrumentation tubing.
SS 316L Fittings for Analyser and Sampling Lines
Analyser and sampling systems use several small tube connections between the process line, valves, regulators, filters, sample cylinders and measuring instruments.
Arrotop supplies SS 316L Instrumentation Fittings for analyser and sampling lines, including:
- Chemical sampling panel fittings
- Process analyser tube connections
- Gas sampling system fittings
- Water-quality monitoring panel fittings
- pH and conductivity analyser connections
- Sample cylinder connections
- Regulator and filter fittings
- Flowmeter and transmitter hook-ups
- Grab-sampling panel fittings
- Custom adapters for analyser skids
- Connectors, elbows, tees, unions, reducers and adapters can be supplied as individual products or as part of a complete fitting schedule. Send the panel drawing or bill of materials for quotation.
SS 316L Tube Fittings for Pharmaceutical and Clean-Process Equipment
SS 316L Instrumentation Tube Fittings are also supplied for pharmaceutical, food-processing and clean-process equipment where the project calls for low-carbon stainless steel construction.
Common requirements include:
- Purified-water monitoring systems
- Pharmaceutical process skids
- Sampling and dosing equipment
- Pressure and flow instrument lines
- Filter housings and process vessels
- Laboratory and pilot-plant equipment
- Food and beverage processing machinery
- Stainless steel utility panels
For clean-process equipment, mention the required surface finish, cleaning standard, certificates and inspection details in the enquiry. SS 316L material alone does not confirm a hygienic fitting specification.
SS 316L vs SS 316 Instrumentation Tube Fittings
SS 316 and SS 316L provide similar general corrosion resistance, but SS 316L contains less carbon and is commonly preferred for welded equipment and fabricated process systems.
For welded chemical lines, process skids, pharmaceutical equipment and analyser assemblies, buyers often specify SS 316L / UNS S31603 Instrumentation Tube Fittings.
Applications of SS 316L Instrumentation Tube Fittings
SS 316L fittings are widely used in process systems handling compatible water, chemicals, oils, gases and industrial fluids.
Typical applications include:
- Chemical dosing and injection systems
- Water treatment and filtration skids
- Pharmaceutical process equipment
- Analyser and sampling panels
- Wastewater monitoring systems
- Food and beverage machinery
- Pulp and paper plants
- Petrochemical process skids
- Heat exchanger instrument lines
- Cooling-water monitoring connections
- Valve and manifold assemblies
- Pump and compressor instrumentation
- Laboratory process systems
- OEM equipment with welded stainless steel construction
SS 316L offers better resistance than SS 304 in many process environments involving moisture, salts and compatible chemicals because it contains molybdenum.
Custom SS 316L Instrumentation Fittings
Standard catalogue fittings may not match every process skid, analyser panel or OEM machine. Arrotop manufactures custom SS 316L Instrumentation Tube Fittings from drawings, samples or required dimensions.
Custom products may include:
- Metric-to-imperial adapters
- NPT-to-BSP thread combinations
- Special reducing connectors
- Extended-body fittings
- Custom bulkhead connectors
- Gauge and instrument adapters
- Reducer port connectors
- Special thread lengths
- Weld-end and socket-weld fittings
- Customer-specific body dimensions
- Special surface finishes
- Product and heat-number marking
- Repeat components for
- OEM equipment
Send the drawing, tube size, connection details, material grade and quantity for review and quotation.
Replacement SS 316L Fittings for Existing Equipment
Arrotop supplies replacement SS 316L tube fittings for chemical plants, water treatment systems, pharmaceutical equipment, analyser panels and process skids.
Older installations may use special threads, body dimensions or ferrule designs that cannot be identified from the tube OD alone.
For replacement matching, share:
- Clear product photographs
- Fitting dimensions
- Tube OD and wall thickness
- Thread type and size
- Single or double ferrule design
- Existing drawing or part number
- Required quantity
When a standard replacement is not available, Arrotop can manufacture the fitting from an existing drawing or physical sample.
SS 316L Tube Sizes, Threads and End Connections
SS 316L Instrumentation Tube Fittings are available for imperial and metric tubing in equal, reducing and bulkhead configurations.
Available tube sizes include:
- Imperial sizes from 1/16″ to 1½”
- Metric sizes from 1.5 mm to 38.1 mm
- Equal and reducing tube connections
- Special sizes against drawings
Thread and connection options include:
- NPT male and female threads
- BSPT threads
- BSPP threads
- SAE and UNF threads
- Metric threads
- Tube × Tube connections
- Tube × Male Thread connections
- Tube × Female Thread connections
- Bulkhead connections
- Reducing connections
- Custom adapters for existing equipment
Mention the tube OD, wall thickness, thread standard and size in your RFQ. Arrotop supplies standard and custom SS 316L NPT connectors, BSPT adapters, BSPP fittings and metric compression tube fittings.
Pressure ratings vary according to the fitting design, tube OD, wall thickness, tube condition, temperature and end connection. Tube-fitting pressure data also changes with the selected tubing size and wall thickness.
SS 316L Tube Fittings for Welded Skids and Fabricated Assemblies
SS 316L is commonly specified for welded process skids, analyser panels, dosing systems, tanks and fabricated stainless steel equipment. Its low-carbon composition makes it a practical choice where welding forms part of the assembly and the finished equipment will be used in chemical, water treatment, pharmaceutical or general process service.
Arrotop supplies SS 316L Tube Fittings for welded skids and fabricated assemblies, including connectors, elbows, tees, unions, bulkhead fittings, reducers and instrument adapters. Standard fittings can be supplied along with custom parts made from equipment drawings or fitting schedules.
Typical requirements include:
- Chemical dosing and injection skids
- Process sampling panels
- Water treatment assemblies
- Filter and regulator panels
- Valve and manifold hook-ups
- Instrument connections on tanks and vessels
- Pharmaceutical process skids
- Fabricated analyser systems
- OEM stainless steel equipment
For pricing, share the fitting list, tube size, thread details, material grade and required quantity. Arrotop can quote individual products or a complete SS 316L fitting package for the assembly.
Surface Finish and Cleanliness Options for SS 316L Fittings
The required surface finish depends on where the fitting will be installed. A natural machined finish may be suitable for general process use, while pharmaceutical, laboratory, food-processing and clean utility systems may call for additional cleaning, passivation, controlled handling or protective packing.
Available options can include:
- Natural machined finish
- Passivated finish
- Project-specified surface finish
- Cleaned and individually packed fittings
- Product marking and heat-number identification
- Protective end caps or sealed packing
- Inspection and cleanliness documents, when requested
SS 316L material alone does not make a fitting hygienic or suitable for high-purity service. The fitting design, surface-finish limit, cleaning method, packing and documentation must be stated in the project specification.
Mention the required finish and cleanliness level with the enquiry. Arrotop can then confirm the available option and include it in the quotation.
Ordering SS 316L Fittings in EN 1.4404 and EN 1.4435
SS 316L fittings are commonly ordered in UNS S31603 / EN 1.4404. Some projects specify EN 1.4435, which is also part of the 316L family but has a different chemistry range, including a higher minimum molybdenum level in commonly published specifications.
Do not mention only “SS 316L” when the project calls for a specific European grade. Write the exact requirement in the RFQ:
- SS 316L / UNS S31603 / EN 1.4404
- SS 316L / EN 1.4435, when specifically required
- Applicable raw-material standard
- EN 10204 3.1 MTC requirement
- PMI or third-party inspection, if needed
- Required quantity and delivery destination
Arrotop supplies EN 1.4404 Instrumentation Tube Fittings and can review EN 1.4435 Compression Fitting requirements against the purchase specification. Clear grade details help us quote the correct material, certificate and delivery terms.
Request a Quote for SS 316L Instrumentation Tube Fittings
Looking for SS 316L Instrumentation Tube Fittings for a new project, replacement order or custom requirement? Share the fitting type, tube size, thread, ferrule design, operating conditions, quantity and required certificates with Arrotop. We supply standard and custom SS 316L fittings for process skids, analyser systems, pharmaceutical equipment, water treatment plants and OEM assemblies.
