SS 310 / 310S Instrumentation Tube Fittings Manufacturer, Supplier and Exporter in India
Arrotop is a manufacturer, supplier and exporter of SS 310 / 310S Instrumentation Tube Fittings for furnace instrumentation, kiln equipment, industrial heaters, heat exchangers, burner systems and other installations exposed to high operating temperatures.
The range includes SS 310 Compression Tube Fittings, SS 310S Single Ferrule Fittings and SS 310S Double Ferrule Tube Fittings for connecting instrument tubing with gauges, valves, manifolds, transmitters and process equipment. Standard fittings are available along with special reducers, adapters and drawing-based connections for OEM and project requirements.
SS 310 and SS 310S are mainly purchased for heat resistance rather than ordinary air, water or utility lines. Their higher chromium and nickel content gives them good resistance to oxidation and useful strength at elevated temperatures. SS 310S is widely used for furnace parts, radiant tubes, kiln equipment, heat exchangers and refinery equipment.
SS 310 / 310S Fittings for Furnace and Hot-Gas Instrument Lines
Instrument connections near furnaces, burners, ovens and heat-treatment equipment remain exposed to radiant heat, hot gases and repeated temperature changes. Ordinary stainless steel fittings may not be suitable for these conditions over long periods.
SS 310S Instrumentation Tube Fittings are mainly selected for furnace and thermal equipment where resistance to high-temperature oxidation is important. They are used for temperature monitoring lines, pressure instrument connections, burner control systems and sampling lines around hot process equipment.
SS 310S is identified as UNS S31008 / EN 1.4845. The fitting pressure and temperature rating depends on the fitting design, tube size, wall thickness, thread and complete installation. The maximum temperature of the raw material should not be treated as the automatic rating of the finished tube fitting.
Arrotop supplies high-temperature SS 310S tube fittings for new installations, plant maintenance, replacement requirements and complete project quantities.
Choosing Between SS 310 and SS 310S Tube Fittings
SS 310 and SS 310S belong to the same heat-resistant stainless steel family, but the required grade should be mentioned clearly in the purchase enquiry.
- SS 310 is generally identified as UNS S31000.
- SS 310S is identified as UNS S31008 / EN 1.4845.
- SS 310S has a lower carbon limit and is commonly specified for fabricated or welded high-temperature equipment.
- The required grade must match the project specification, tubing and material certificate.
Available SS 310 / 310S Compression and Ferrule Fittings

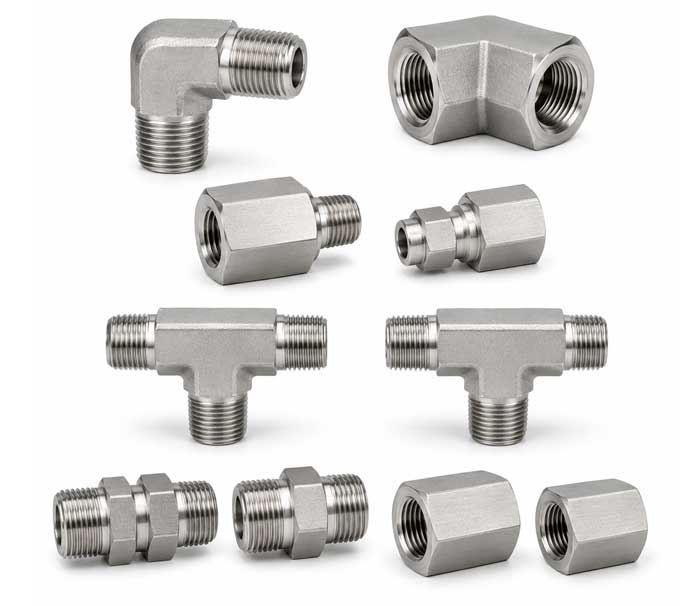

Arrotop manufactures SS 310 and SS 310S fittings in tube-to-tube, tube-to-thread, reducing and bulkhead configurations.
The product range includes:
- SS 310 / 310S Male Connectors
- SS 310 / 310S Female Connectors
- SS 310 / 310S Union Connectors
- SS 310 / 310S Male and Female Elbows
- SS 310 / 310S Union Elbows
- SS 310 / 310S Male Run Tees
- SS 310 / 310S Female Run Tees
- SS 310 / 310S Male Branch Tees
- SS 310 / 310S Female Branch Tees
- SS 310 / 310S Bulkhead Connectors
- SS 310 / 310S Bulkhead Unions
- SS 310 / 310S Reducing Unions
- SS 310 / 310S Union Crosses
- SS 310 / 310S Reducer Port Connectors
- SS 310 / 310S NPT Male Adapters
- SS 310 / 310S BSPT Couplings
- SS 310 / 310S BSPP Plugs
- SS 310 / 310S Front and Back Ferrules
- SS 310 / 310S Tube Caps and Plugs
SS 310 / 310S Instrumentation Tube Fittings are available in single ferrule and double ferrule designs for imperial and metric tubing. The required design depends on the tubing and the fitting system already used at the site.
SS 310S Fittings for Thermal Equipment and Process Plants
SS 310S fittings are mainly considered for instrumentation installed around high-temperature equipment. Typical requirements come from:
- Industrial furnaces and ovens
- Heat-treatment plants
- Rotary kilns
- Radiant tube systems
- Burner and combustion equipment
- Heat exchangers and recuperators
- Refinery heaters and hot process equipment
- Boiler and power-generation systems
- Petrochemical heating units
- Cement and mineral-processing plants
- Thermal test rigs
- OEM heating equipment
SS 310 / 310S is commonly used for furnace parts, radiant tubes, kilns, air heaters, heat-treatment equipment and refinery heating systems because it handles high-temperature oxidation well.
The actual service conditions still matter. A fitting installed near a furnace faces external heat, while another may carry hot gas or process fluid. Share the pressure, temperature and media details with Arrotop so the right fitting can be quoted.
Custom SS 310S Instrumentation Fittings for Thermal Equipment
High-temperature equipment often needs special connections that are not available as standard catalogue fittings. Arrotop manufactures custom SS 310S Instrumentation Tube Fittings from customer drawings, samples or required dimensions.
Custom requirements may include:
- Extended-body connectors
- Special furnace instrument adapters
- Metric-to-imperial connections
- NPT-to-BSP thread combinations
- Unequal reducing unions
- Custom bulkhead fittings
- Thermowell and gauge adapters
- Special thread lengths
- Weld-end connections
- Fittings for restricted mounting locations
- Replacement fittings for old thermal equipment
- Customer-specific marking and heat-number identification
Replacement SS 310 / 310S Instrumentation Tube Fittings for Existing Equipment
Arrotop supplies replacement SS 310 / 310S tube fittings for furnaces, kilns, heaters and refinery equipment. Older systems may use special body sizes, thread combinations or ferrule designs that cannot be identified from the tube size alone.
For replacement matching, share:
- Clear photographs of the existing fitting
- Tube OD and wall thickness
- Male or female thread details
- Single or double ferrule design
- Fitting dimensions
- Existing drawing or part number
- Material certificate, when available
- Operating temperature and pressure
- Required quantity
When a standard replacement is not available, Arrotop can manufacture the fitting from an existing drawing or physical sample.
Features of SS 310 / 310S Instrumentation Tube Fittings
- Manufactured in SS 310 / UNS S31000 and SS 310S / UNS S31008 / EN 1.4845, as specified in the order.
- The high chromium and nickel content gives these fittings good resistance to oxidation at elevated temperatures.
- Suitable for instrument connections near furnaces, kilns, burners, ovens, industrial heaters and refinery heating equipment.
- Maintains better strength under heat than standard
- SS 304-grade fittings.
- SS 310S has lower carbon than SS 310 and is commonly selected for welded or fabricated high-temperature equipment.
- Available in single ferrule and double ferrule designs for imperial and metric instrumentation tubing.
- Custom connectors, reducers and adapters can be manufactured for furnace equipment and non-standard hot-service connections.
- Replacement SS 310 / 310S fittings can be made from an existing drawing, dimensions or physical sample.
Technical Specifications of SS 310 / 310S Instrumentation Tube Fittings
- Product : SS 310 / 310S Instrumentation Tube Fittings
- Material Grades : Stainless Steel 310 and Stainless Steel 310S
- Grade Designation : SS 310: UNS S31000; SS 310S: UNS S31008 / EN 1.4845
- Design : Single Ferrule & Double Ferrule
- Applications : Furnace, kiln, burner, heater and other high-temperature instrument connections
- Raw Material Form : Machined bar stock or forged material, depending on the fitting design
- Raw Material Standard : ASTM A479/A479M for bar stock and ASTM A182/A182M for forged components
- Imperial Tube Sizes : 1/16″ to 1½”
- Metric Size : 1.5 mm to 38.1 mm
- Thread Types : NPT, BSPT, BSPP, SAE, UNF and Metric Threads
- Surface Finish : Natural Machined Finish or Project-Specific Finish
- Custom Supply : Special reducers, extended-body connectors, furnace adapters and drawing-based fittings
Applications of SS 310 / 310S Instrumentation Tube Fittings
SS 310 / 310S Instrumentation Tube Fittings are mainly used for instrument connections exposed to high heat, hot gases and repeated temperature changes. They are commonly selected for furnace, kiln, burner and refinery heating systems where standard stainless steel fittings may not be suitable for long-term hot service.
Typical applications include:
- SS 310S tube fittings for industrial furnace instrument lines
- Pressure and temperature connections on heat-treatment furnaces
- Instrument fittings for rotary kilns and calcination equipment
- Burner control and combustion monitoring lines
- SS 310S compression fittings for radiant tube systems
- Instrument connections on industrial ovens and air heaters
- High-temperature heat exchanger and recuperator instrument lines
- Refinery heater pressure and temperature connections
- Hot-gas sampling and analyser lines
- Boiler furnace and power plant heating equipment instrumentation
- Tube fittings for cement, mineral and metal-processing furnaces
- Instrument connections on petrochemical heating units
- SS 310 / 310S fittings for thermal testing equipment
- OEM furnace, kiln, burner and heater assemblies
Arrotop supplies SS 310 / 310S connectors, elbows, tees, unions, bulkhead fittings, reducers and adapters for new installations, plant maintenance and project requirements. Share the fitting type, tube size, thread, operating temperature and quantity for price and availability.
SS 310 / 310S Tube Sizes, Threads and End Connections
Arrotop supplies SS 310 / 310S Instrumentation Tube Fittings for imperial and metric tubing. Standard sizes are available along with reducing and custom connections for furnaces, hot-gas lines and thermal equipment.
Available tube sizes include:
- Imperial sizes from 1/16″ to 1½”
- Metric sizes from 1.5 mm to 38.1 mm
- Equal and reducing connections
- Special sizes against drawings or samples
Available thread and connection options include:
- NPT male and female threads
- BSPT threads
- BSPP threads
- SAE and UNF threads
- Metric threads
- Tube × Tube connections
- Tube × Male Thread connections
- Tube × Female Thread connections
- Bulkhead connections
- Reducing connections
- Custom adapters for existing equipment
Mention the tube OD, wall thickness, thread standard and size in your RFQ. Arrotop supplies standard and custom SS 310S NPT connectors, BSPT adapters, BSPP fittings and metric compression tube fittings.
Request a Quote for SS 310 / 310S Tube Fittings.
For price and availability, send Arrotop the following details:
- Required grade: SS 310 / UNS S31000 or SS 310S / UNS S31008
- Fitting type or drawing
- Tube outside diameter and wall thickness
- Thread type and size
- Single or double ferrule design
- Operating pressure and temperature
- Process fluid or hot gas
- Required quantity
- Test certificate or inspection requirement
- Delivery destination
Arrotop supplies standard and custom SS 310 / 310S Instrumentation Tube Fittings from Mumbai, India, for OEMs, thermal equipment manufacturers, EPC contractors, plant maintenance teams and international buyers.
