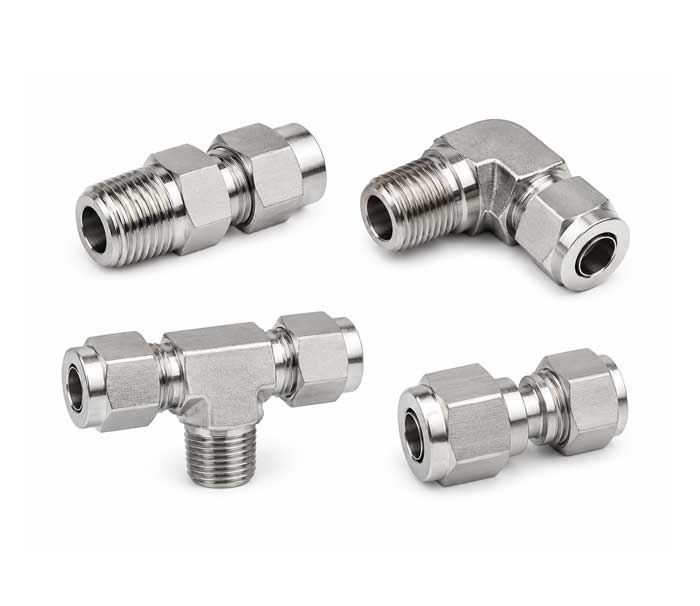

SS 304 Instrumentation Tube Fittings Manufacturer, Supplier & Exporter in India
Arrotop manufactures, supplies and exports SS 304 Instrumentation Tube Fittings for industrial tubing systems carrying air, water, gases, oils and other compatible process media. These fittings provide secure and dependable tube connections for instrumentation panels, utility lines, process equipment, testing systems and general industrial installations.
Our manufacturing range covers SS 304 Compression Tube Fittings, Single Ferrule Tube Fittings and Double Ferrule Tube Fittings in different tube sizes, thread combinations and end connections. Precision machining helps maintain accurate dimensions, proper ferrule action and a firm grip on the tube, reducing the risk of leakage during normal operation, pressure changes and equipment vibration.
Stainless Steel 304 Instrumentation Fittings
Stainless Steel 304, also identified as AISI 304, UNS S30400, DIN 1.4301 and SUS 304, is a widely used austenitic stainless steel grade. It offers a practical combination of corrosion resistance, mechanical strength, machinability and cost. This makes SS 304 Instrumentation Fittings a suitable choice for general industrial service where the system does not handle seawater, high chloride concentrations or highly aggressive chemicals.
For many air, water and utility applications, SS 304 provides a cost-effective alternative to higher-alloyed materials. Where the process involves strong chlorides, marine exposure or more corrosive chemicals, the operating conditions should be reviewed before selecting the material.
SS 304 Compression, Single Ferrule and Double Ferrule Fittings
Arrotop supplies SS 304 Compression Tube Fittings in single ferrule and double ferrule configurations. Single ferrule fittings offer a straightforward connection for general instrumentation work, while double ferrule fittings use separate front and back ferrules to provide additional tube grip and sealing support.
The right design depends on the tube material, outside diameter, wall thickness, pressure, temperature, process media and vibration level. Our team can review these details before quotation and recommend a suitable configuration for the required service.
Available SS 304 Instrumentation Tube Fittings
The SS 304 product range includes:
- SS 304 Male Connectors
- SS 304 Female Connectors
- SS 304 Union Connectors
- SS 304 Male Elbows
- SS 304 Female Elbows
- SS 304 Union Elbows
- SS 304 Male Branch Tees
- SS 304 Female Branch Tees
- SS 304 Male Run Tees
- SS 304 Female Run Tees
- SS 304 Bulkhead Male Connectors
- SS 304 Bulkhead Female Connectors
- SS 304 Bulkhead Unions
- SS 304 Reducing Unions
- SS 304 Union Crosses
- SS 304 Reducer Port Connectors (RPC)
- SS 304 Front and Back Ferrules
- AISI 304 NPT Male Adapters
- SS 304 BSPT Couplings
- SS 304 BSPP Plugs
- Tube Plugs and Tube Caps
Fittings can be supplied for imperial and metric tubing with NPT, BSP, BSPT, BSPP and metric thread options, subject to the required design. Standard products as well as drawing-based configurations can be manufactured for OEM, maintenance and project requirements.
Applications of SS 304 Instrumentation Tube Fittings
SS 304 Instrumentation Tube Fittings are commonly used in:
- Instrumentation and control panels
- Compressed air and pneumatic lines
- Industrial water and utility systems
- Hydraulic oil lines
- Process sampling systems
- Laboratory and testing equipment
- Pressure, flow and temperature instrument connections
- OEM machines and packaged equipment
- Pump and compressor instrumentation
- Process skids and general plant utilities
The final material and fitting selection should always match the actual pressure, temperature and process media.
Features of SS 304 Instrumentation Tube Fittings
- Manufactured from AISI 304 / UNS S30400 / EN 1.4301 austenitic stainless steel.
- Good resistance to moisture, atmospheric exposure and many mild industrial process environments.
- Suitable for general instrumentation systems carrying air, water, oils and compatible gases.
- Precision-machined body, nut and ferrule components help maintain accurate tube alignment during assembly.
- Available in single ferrule and double ferrule configurations.
- Good mechanical strength for general industrial pressure service.
- Clean metallic surface makes the fittings suitable for instrumentation panels, laboratory equipment and packaged process systems.
- Available for imperial and metric instrumentation tubing.
- Offered with NPT, BSPT, BSPP, SAE and metric connection options, depending on the fitting type.
- Suitable for repeated maintenance and remake where the fitting design and tube condition permit.
- More economical than SS 316, Duplex and higher-alloy materials for suitable non-marine applications.
- Standard and drawing-based configurations can be manufactured for OEM, maintenance and project requirements.
Technical Specifications of SS 304 Instrumentation Tube Fittings
- Product : SS 304 Instrumentation Tube Fittings
- Material : Stainless Steel 304
- Equivalent Designations : AISI 304, UNS S30400, EN/DIN 1.4301, JIS SUS 304
- Fitting Design : Single Ferrule and Double Ferrule
- Tube Size : 1/16 inch to 1½ inch, subject to fitting design
- Metric Tube Range : 1.5 mm to 38.1 mm, subject to fitting design
- Thread Options : NPT, BSPT, BSPP, SAE and Metric
- Material Specifications : ASTM A182, ASTM A276 or ASTM A479, as applicable to the raw-material form
- Surface : Natural machined finish; passivation or special finish on request
- Service Media : Air, water, hydraulic oil, lubricating oil, compatible gases and mild process fluids
Available Tube Sizes and Pressure Ratings
Arrotop can manufacture SS 304 Instrumentation Tube Fittings for imperial and metric tubing, including commonly used sizes for control panels, instrument hook-ups, process skids and utility systems.
- Imperial Tube Sizes : 1/16″, 1/8″, 3/16″, 1/4″, 5/16″, 3/8″, 1/2″, 5/8″, 3/4″, 7/8″, 1″, 1¼” and 1½”
- Metric Tube Sizes : 1.5 mm, 3 mm, 4 mm, 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 15 mm, 16 mm, 18 mm, 20 mm, 22 mm, 25 mm, 28 mm, 30 mm, 32 mm and 38.1 mm
Thread Types
- NPT, BSPT, BSPP, SAE Straight, Metric Thread, UN and UNF
End connections
- Tube × Tube
- Tube × Male NPT
- Tube × Female NPT
- Tube × Male BSPT
- Tube × Female BSP
- Tube × BSPP
- Tube × Metric
- Thread
- Reducing Tube × Tube
- Bulkhead Tube Connection
- Tube × Weld End
- Tube × Socket Weld
- Tube × Hose or equipment adapter, where specified
Compatible Process Media
SS 304 Instrumentation Tube Fittings are commonly considered for systems carrying:
- Compressed air
- Instrument air
- Industrial water
- Treated water
- Lubricating oil
- Hydraulic oil
- Cooling fluids compatible with SS 304
- Inert gases
- Compatible industrial gases
- Mild cleaning solutions
- Low-corrosivity process fluids
- General plant utility media
- Laboratory fluids compatible with SS 304
Quality Inspection and Documentation
Our team checks SS 304 tube fittings for dimensional accuracy, thread condition, surface finish and assembly consistency before dispatch. Pressure and leakage testing can be carried out as required by the product specification or purchase order.
Material may be supplied in accordance with applicable ASTM A276, ASTM A479 or ASTM A182 requirements, depending on the component form and manufacturing route. Arrotop can also provide EN 10204 3.1 Material Test Certificates, inspection reports, material traceability records and third-party inspection documents when requested at the enquiry stage.
Request a Quote for SS 304 Instrumentation Tube Fittings
Arrotop handles requirements ranging from small maintenance quantities and OEM repeat orders to bulk supplies for industrial projects. For an accurate quotation, buyers can share the fitting type, tube OD, wall thickness, thread standard, operating pressure, process media, quantity and documentation requirements.
As an SS 304 Instrumentation Tube Fittings Manufacturer, Supplier and Exporter in India, Arrotop supports domestic and international buyers with standard products, customised configurations, export packing and project-based supply.
