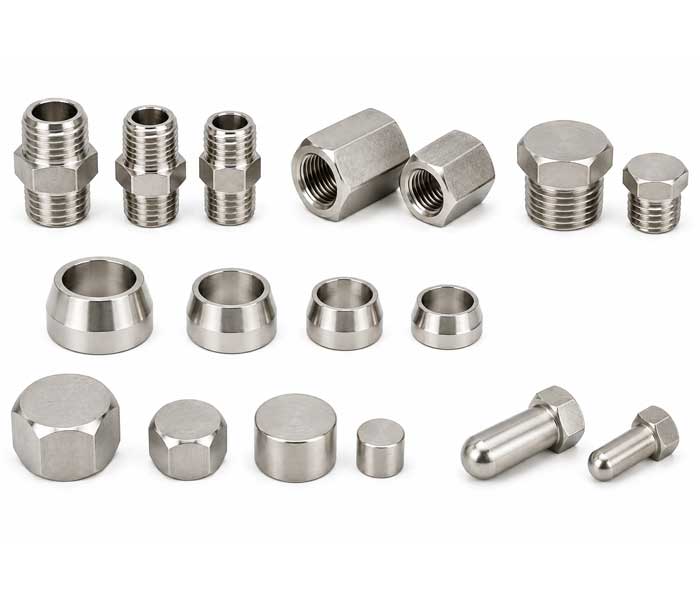

SS 316H Instrumentation Tube Fittings Manufacturer, Supplier and Exporter in India
Arrotop is a manufacturer, supplier and exporter of SS 316H Instrumentation Tube Fittings for refineries, boiler systems, heat exchangers, chemical plants and other equipment operating at elevated temperatures.
Our range includes SS 316H Compression Tube Fittings, single ferrule fittings and double ferrule tube fittings for connecting instrumentation tubing with gauges, valves, manifolds, transmitters and process equipment.
SS 316H is mainly specified for hot instrument lines that also need the corrosion resistance of the SS 316 family. The recognised grade is UNS S31609. Mentioning this designation clearly in the enquiry helps avoid confusion with standard SS 316 or low-carbon SS 316L.
Arrotop supplies standard products, project quantities and custom SS 316H fittings manufactured from drawings or samples.
SS 316H Fittings for Hot and Corrosive Instrument Lines
Engineers usually select SS 316H for instrument lines that remain exposed to high temperatures. The grade maintains better strength under heat than SS 316L and offers better corrosion resistance than SS 304H in many compatible process environments.
This makes SS 316H Tube Fittings for refinery and boiler instrument lines a practical choice for:
- Pressure and temperature monitoring lines
- Hot oil sampling systems
- Steam-related instrument connections
- Heat exchanger hook-ups
- Heated process vessels
- Petrochemical equipment
- Boiler auxiliary systems
- Hot process analyser lines
- Chemical equipment handling compatible media
Arrotop supplies SS 316H connectors, elbows, tees, unions, ferrules and adapters for new installations, plant maintenance and project requirements.
Available SS 316H Compression and Ferrule Fittings
Arrotop manufactures SS 316H fittings in tube-to-tube, tube-to-thread, reducing and bulkhead designs.
Available products include:
- SS 316H Male Connectors
- SS 316H Female Connectors
- SS 316H Union Connectors
- SS 316H Male Elbows
- SS 316H Female Elbows
- SS 316H Union Elbows
- SS 316H Male Run Tees
- SS 316H Female Run Tees
- SS 316H Male Branch Tees
- SS 316H Female Branch Tees
- SS 316H Union Tees
- SS 316H Bulkhead Male Connectors
- SS 316H Bulkhead Female Connectors
- SS 316H Bulkhead Unions
- SS 316H Straight Unions
- SS 316H Reducing Unions
- SS 316H Union Crosses
- SS 316H Reducer Port Connectors
- SS 316H NPT Male Adapters
- SS 316H BSPT Couplings
- SS 316H BSPP Plugs
- SS 316H Front and Back Ferrules
- SS 316H Tube Caps and Tube Plugs
Both Grade 316H Stainless Steel Single Ferrule Fittings and SS 316H Double Ferrule Tube Fittings are available for imperial and metric instrumentation tubing.
SS 316H Fittings for Refineries, Boilers and Heat Exchangers
Refineries, boilers and heated process equipment use instrumentation to monitor pressure, temperature, flow and process conditions. The tube fittings used around this equipment may face regular heat or carry hot process media.
Arrotop supplies SS 316H Instrumentation Tube Fittings for refineries, boilers and heat exchanger systems, including:
- Pressure gauge connections
- Transmitter hook-up lines
- Steam and condensate instrument lines
- Hot oil monitoring connections
- Boiler instrumentation tubing
- Heat exchanger pressure lines
- Refinery sampling connections
- Heated vessel instrument lines
- Valve and manifold connections
- Hot-process analyser panels
Individual fittings and complete fitting schedules can be supplied against the project bill of materials.
SS 316H vs SS 316L Tube Fittings
SS 316H and SS 316L belong to the same stainless steel family, but they are used for different requirements.
SS 316H is commonly selected where elevated-temperature strength is important. SS 316L contains less carbon and is generally preferred for welded process equipment where the low-carbon grade is specified.
For hot-service requirements, mention SS 316H / UNS S31609 clearly in the RFQ and material certificate. Writing only “SS 316” may result in a different grade being quoted.
Custom SS 316H Instrumentation Fittings
Hot-service equipment may need connections that are not available as standard catalogue products. Arrotop manufactures custom SS 316H Instrumentation Tube Fittings from drawings, samples or required dimensions.
Custom products may include:
- Non-standard tube-to-thread connectors
- Metric-to-imperial adapters
- NPT-to-BSP thread combinations
- Extended-body connectors
- Special reducing unions
- Custom bulkhead fittings
- Gauge and transmitter adapters
- Reducer port connectors
- Special thread lengths
- Weld-end connections
- Fittings for restricted installation spaces
Customer-specific body dimensions and marking
Send the drawing, tube size, connection details, operating temperature and quantity for review and quotation.
Replacement SS 316H Fittings for Existing Hot-Service Systems
Arrotop supplies replacement SS 316H Tube Fittings for refineries, boilers, heat exchangers, chemical plants and power-generation equipment.
Older systems may use special threads, ferrule designs or body dimensions that cannot be identified from the tube size alone.
For replacement matching, share:
- Clear product photographs
- Fitting dimensions
- Tube OD and wall thickness
- Thread type and size
- Single or double ferrule design
- Existing drawing or part number
- Material certificate, if available
- Required quantity
When a standard replacement is not available, Arrotop can manufacture the fitting from an existing drawing or physical sample.
SS 316H Tube Sizes, Threads and End Connections
SS 316H Instrumentation Tube Fittings are available for imperial and metric tubing in equal, reducing and bulkhead configurations.
Available options include:
- Imperial tube sizes from 1/16″ to 1½”
- Metric tube sizes from 1.5 mm to 38.1 mm
- NPT male and female threads
- BSPT threads
- BSPP threads
- SAE and UNF threads
- Metric threads
Tube × Tube connections - Tube × Male
- Thread connections
- Tube × Female
- Thread connections
- Reducing connections
- Bulkhead connections
- Custom adapters for existing equipment
Mention the tube OD, wall thickness, thread standard and size in your RFQ. Arrotop supplies standard and custom SS 316H NPT connectors, BSPT adapters, BSPP fittings and metric compression tube fittings.
Pressure ratings vary according to the fitting design, tube size, wall thickness, temperature and end connection. Share the operating details with the enquiry so the correct fitting can be quoted.
Features of SS SS 316H Instrumentation Tube Fittings
- Manufactured from SS 316H / UNS S31609 stainless steel.
- Maintains better strength at elevated temperatures than SS 316L.
- Offers better corrosion resistance than SS 304H in many compatible process and chemical environments.
- Suitable for hot instrument lines in refineries, boilers, heat exchangers, chemical plants and power-generation equipment.
- A practical choice where the fitting faces both regular heat and mildly corrosive process conditions.
- Available in single ferrule and double ferrule designs.
- In double ferrule fittings, the front ferrule forms the seal while the back ferrule grips the tube.
- Material marking and heat-number traceability help confirm the required UNS S31609 grade.
Applications of SS 316H Instrumentation Tube Fittings
SS 316H Compression and Ferrule Fittings are mainly used on hot instrument lines in refineries, boiler plants, chemical units and power-generation equipment. The grade is commonly specified where the connection remains exposed to elevated temperatures, and standard SS 316L may not provide the required hot-service strength.
Typical applications include:
- SS 316H fittings for refinery pressure and temperature instrument lines
- Boiler steam and hot-process monitoring connections
- Superheater and reheater instrumentation in power plants
- Heat exchanger pressure gauge and transmitter hook-ups
- Hot oil sampling and measurement lines
- Instrument connections on heated vessels and reactors
- Petrochemical process-unit instrumentation
- High-temperature chemical sampling lines carrying compatible media
- Valve and manifold connections around hot process equipmentSS 316H compression fittings for boiler auxiliary systems
- Hot-process analyser panels and sampling skids
- Instrument tubing on thermal and power-generation equipment
SS 316H is used in high-temperature tubing applications, including superheater and reheater service, which makes it relevant for connected boiler and power-plant instrumentation where the same grade is specified.
Arrotop supplies SS 316H connectors, elbows, tees, unions, bulkhead fittings, ferrules and adapters for new projects, plant maintenance and replacement requirements. Share the fitting list, tube size, thread details, operating temperature and quantity for price and availability
Technical Specifications of SS 316H Instrumentation Tube Fittings
- Product : SS 316H Instrumentation Tube Fittings
- Material Grades : Stainless Steel 316H
- Grades Designations : UNS S31609
- Alternative European Grades : EN 1.4401, with SS 316H chemistry clearly specified
- Design : Single Ferrule & Double Ferrule
- Material Standards : ASTM A182/A182M Grade F316H
- Imperial Tube Sizes : 1/16″ to 1½”, subject to fitting design
- Metric Tube Sizes : 1.5 mm to 38.1 mm
- Thread Options : NPT, BSPT, BSPP, SAE, UNF and Metric Threads
- Surface Finish : Natural Machined Finish or Project-Specified Finish
SS 316H is the higher-carbon version of SS 316 and is mainly specified where the fitting needs better strength at elevated temperatures. The grade is identified as UNS S31609.
ASTM A479 covers stainless steel bar used for boilers and pressure-vessel construction, while ASTM A182 covers forged stainless steel fittings and related components for high-temperature service.
The working pressure cannot be decided from the material grade alone. Tube size, wall thickness, fitting design and operating temperature all affect the final rating.
For quotation, mention SS 316H / UNS S31609, fitting type, tube size, thread, operating pressure, temperature and required quantity.
SS 316H vs SS 304H for Hot and Corrosive Instrument Lines
SS 304H and SS 316H are both used for instrument lines exposed to elevated temperatures, but they are selected for different process conditions.
SS 304H is generally suitable where high-temperature strength is required and the corrosion level is moderate. SS 316H contains molybdenum, making it a better choice where the line needs to handle both heat and corrosive process conditions.
This makes SS 316H Instrumentation Tube Fittings suitable for refinery units, chemical plants, boilers, heat exchangers and hot sampling systems.
Arrotop supplies SS 316H connectors, elbows, tees, unions, bulkhead fittings and adapters in single ferrule and double ferrule designs. Share the process media, pressure, temperature and fitting list for review and quotation.
SS 316H Fittings for Steam, Condensate and Hot Oil Instrument Lines
Steam, condensate and hot oil systems use tube fittings to connect pressure gauges, transmitters, valves, manifolds and sampling equipment. These fittings may remain close to heated equipment or carry hot process media while the plant is running.
Arrotop supplies SS 316H Compression and Ferrule Fittings for steam, condensate and hot oil instrument lines, including:
- Boiler pressure gauge connections
- Steam pressure transmitter lines
- Condensate monitoring connections
- Hot oil sampling lines
- Heat exchanger instrument hook-ups
- Valve and manifold tubing
- Temperature instrument connections
- Heated vessel pressure lines
- Hot-process analyser connections
- Boiler auxiliary instrumentation
Available products include male and female connectors, elbows, tees, unions, reducers, bulkhead fittings and NPT, BSPT or BSPP adapters.
Send the tube OD, wall thickness, thread details, operating pressure, temperature and quantity for price and availability.
SS 316H Fitting Packages for Refinery Shutdowns and Boiler Maintenance
Refinery shutdowns and boiler maintenance work often require several types of fittings within the planned maintenance schedule. Arrotop supplies individual replacement fittings as well as complete SS 316H fitting packages for refinery and boiler maintenance requirements.
Shutdown and maintenance orders may include:
- Male and female connectors
- Straight and reducing unions
- Elbows and branch tees
- Run tees and union crosses
- Bulkhead connectors and unions
- Front and back ferrules
- Reducer port connectors
- NPT male adapters
- BSPT couplings
- BSPP plugs
- Custom replacements made from drawings or samples
Older equipment may use special threads, body sizes or ferrule designs. Share the bill of materials, existing part details, drawings, quantity and required delivery schedule so Arrotop can check the items and quote the full requirement.
Mention the required material certificates, inspection reports and export documents in the RFQ.
Request a Quote for SS 316H Instrumentation Tube Fittings
Looking for SS 316H fittings for a refinery, boiler, heat exchanger or hot-process system? Send Arrotop the fitting list or drawing, tube size, thread details, ferrule design, operating pressure and temperature, process media, quantity and certificate requirements.
Arrotop supplies standard and custom SS 316H Instrumentation Tube Fittings from Mumbai, India, for OEMs, EPC contractors, refineries, chemical plants, power projects, maintenance teams and international buyers.
