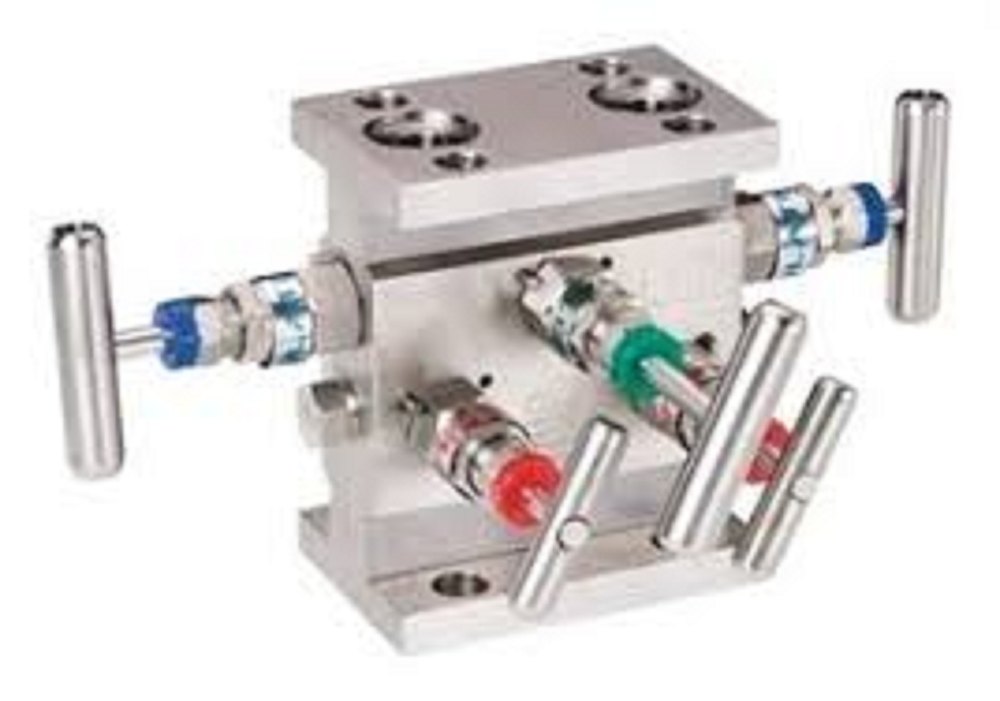

5 Valve Manifold, H Type – Direct Mounting, Both Side Flange Manufacturer and Exporter in India
Arrotop offers the 5 Valve Manifold, H Type, Direct Mounting, Both Side Flange, a precision-engineered valve assembly designed for accurate differential pressure measurement, isolation, and process control in industrial systems. Manufactured from high-quality materials and adhering to stringent quality standards, this manifold ensures leak-proof operation, reliable performance, and long-lasting durability.
The H Type, Direct Mounting configuration features both side flanges, providing versatile piping connections for complex layouts while maintaining a compact installation. The five-valve design offers full isolation, equalization, and venting for both high- and low-pressure sides, making it suitable for critical instrumentation and process systems.
Features
- Direct mounting design – Attach directly to pressure instruments for compact installation
- Both side flange connections – Flexible piping integration for complex layouts
- Five-valve configuration – Two block valves, two equalizing/vent valves, and one additional valve for precise control
- Durable construction – Stainless steel or alloy steel options for corrosion and pressure resistance
- Leak-proof operation – Ensures accurate differential pressure readings
- Precision-machined valves – Smooth operation and reliable sealing
- Compliant with international standards – ISO, ANSI, and other industrial specifications
Applications
The 5 Valve Manifold, H Type is widely used in:
- Differential pressure transmitters for flow, level, and pressure measurement
- Oil & gas, petrochemical, chemical, and power plants
- Instrumentation systems where direct mounting and both side flanges are required
- Complex piping layouts needing versatile connections on both sides
- Critical process applications requiring reliable, leak-proof performance and precise equalization
Why Choose Arrotop 5 Valve Manifold, H Type?
- Provides accurate differential pressure measurement for critical systems
- Both side flange design enables flexible installation
- Five valves allow full control for isolation, equalization, and venting
- Compact and durable construction reduces installation and maintenance effort
- Manufactured with precision CNC machining for consistent quality
- Suitable for global exports, compliant with international standards
Technical Specifications
- Valve Type: H Type, 5-Valve Manifold
- Mounting: Direct Mounting
- Flanges: Both Side Flange
- Material: Stainless Steel / Alloy Steel / Carbon Steel
- Pressure Rating: Up to 6000 PSI (depending on material and configuration)
- Temperature Range: -40°C to 450°C (depending on valve construction)
- End Connections: Flanged / Threaded
Benefits
- Accurate and reliable differential pressure measurement
- Flexible installation with both side flange design
- Leak-proof valves enhance process reliability
- Smooth valve operation reduces maintenance downtime
- Ideal for industrial instrumentation, petrochemical, and process control applications
