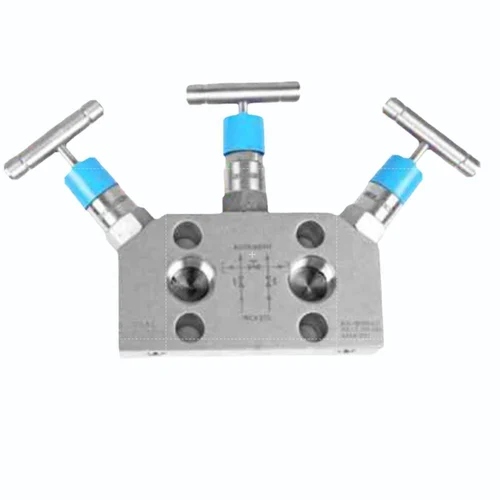

3 Valve Manifold, Coplanar – Direct Mounting Manufacturer and Exporter in India
Arrotop offers the 3 Valve Manifold, Coplanar, Direct Mounting, a precision-engineered valve assembly designed for accurate differential pressure measurement and efficient process control in industrial systems. Manufactured from high-quality materials and adhering to strict quality standards, this manifold ensures leak-proof operation, reliable performance, and long-term durability.
The coplanar design allows all valves to be aligned in a single plane, simplifying installation and providing a compact footprint. The direct mounting configuration enables the manifold to be installed directly on the instrument, improving space efficiency and reducing piping complexity.
Features
- Direct mounting design – Compact installation directly on pressure transmitters
- Coplanar valve arrangement – All valves aligned in a single plane for easy operation
- Three-valve configuration – Two block valves and one equalizing valve for precise differential pressure measurement
- Durable construction – Stainless steel or alloy steel options for corrosion and pressure resistance
- Leak-proof operation – Ensures accurate readings and minimizes maintenance requirements
- Smooth valve operation – Precision-machined valves for reliability
- Compliant with international standards – ISO, ANSI, and other industrial specifications
Applications
The 3 Valve Manifold, Coplanar, Direct Mounting is commonly used in:
- Differential pressure transmitters for flow, level, and pressure monitoring
- Oil & gas, petrochemical, chemical, and power plants
- Instrumentation systems where a compact, coplanar installation is preferred
- Piping layouts requiring space-saving solutions
- Critical measurement systems demanding accurate, leak-proof operation
Why Choose Arrotop 3 Valve Manifold, Coplanar?
- Provides precise differential pressure measurement for critical systems
- Coplanar design simplifies installation and reduces footprint
- Compact, durable, and easy-to-maintain construction
- Manufactured with precision CNC machining for consistent quality
- Suitable for global export, with full documentation and compliance with international standards
Technical Specifications
- Valve Type: Coplanar, 3-Valve Manifold
- Mounting: Direct Mounting
- Material: Stainless Steel / Alloy Steel / Carbon Steel
- Pressure Rating: Up to 6000 PSI (depending on material and configuration)
- Temperature Range: -40°C to 450°C (depending on valve construction)
- End Connections: Flanged / Threaded
Benefits
- Accurate and reliable differential pressure measurement
- Compact coplanar design saves space
- Leak-proof valves enhance process reliability
- Easy maintenance reduces downtime and operational costs
- Ideal for industrial instrumentation and process control applications
