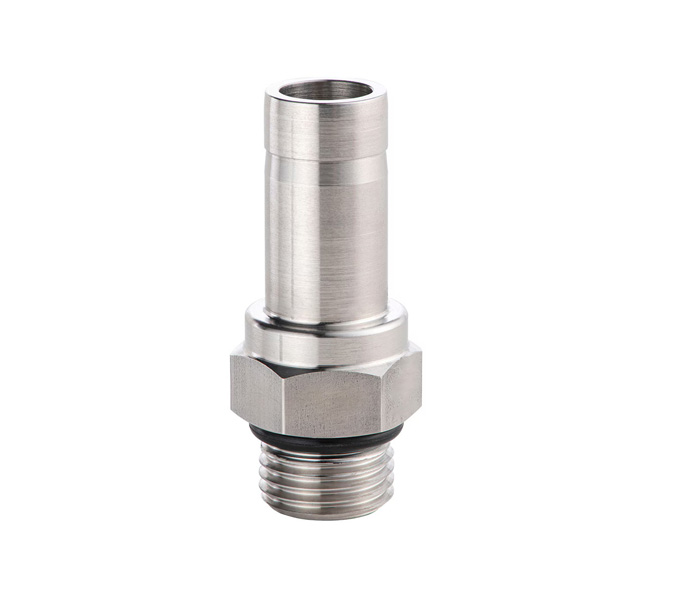

In the world of fluid and gas systems, Thread & Tube End fittings play a crucial role as precision connectors that ensure seamless, leak-proof, and pressure-resistant connections. These components serve as a vital bridge between tubing systems and threaded ports, combining the reliability of tube-end grip with the versatility of threaded connections.
Whether you’re working in hydraulics, pneumatics, industrial automation, or instrumentation, these fittings ensure efficiency, safety, and durability in high-pressure environments.
Product Data
Key Features
TECH-INFO
APPLICATIONS
Key Features
- Dual Connection Capability
One end for tube connection (typically compression or flare type).Other end with standard threads (NPT, BSP, SAE, etc.) - High Pressure & Vibration Resistance
Designed to maintain integrity in demanding industrial environments - Leak-Proof Sealing
Precision-engineered to provide tight, secure, and leak-free connections - Versatile Compatibility
Suitable for a wide range of piping, tubing, and equipment standards - Corrosion Resistance
Available in Stainless Steel, Brass, and other corrosion-resistant materials - Quick and Easy Installation
Requires minimal tools and time for assembly or disassembly - Reusable Design
Durable construction allows for repeated connections without compromising performance - Available in Metric & Imperial Sizes
Supports both global and local project requirements
TECH-INFO
Technical Information :
- Material Options : SS 304, SS 316, SS 316L, Brass, Carbon Steel, Copper, Gunmetal . Bronze, other material on request
- Thread Types : NPT, BSPT, BSPP, Metric Threads (on request)
- Size Range : 1/8″ to 2”
- Working Pressure: from 150 to 1200 PSI
- Temperature Range: Stainless Steel (-425°F to 1200°F (-252°C to 648°C)), Brass (-40°F to 400°F (-40°C to 204°C))
APPLICATIONS
Applications of Thread & Tube End
- Oil & Gas: Pipeline connections, wellhead equipment, and pressure regulators.
- Chemical & Petrochemical: Chemical reactors, piping systems, and storage tanks.
- Food & Beverage: Sanitary piping and liquid transfer systems.
- Pharmaceutical: Sterilization equipment and fluid handling systems.
- Automotive & Aerospace: Cooling systems and fuel line connections.
- HVAC: Heating, cooling, and ventilation system connections.
- Power Generation: Steam and water pipeline connections in power plants.
- Marine & Shipbuilding: Hydraulic, fuel lines, and ballast system connections.
- Medical Equipment: IV systems and oxygen system connections.
- Industrial Equipment: Pneumatic/hydraulic systems and instrument connections.
