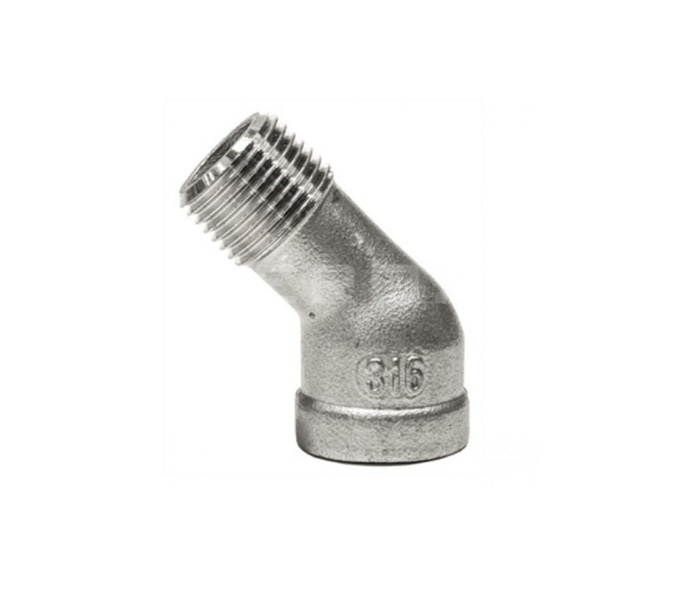

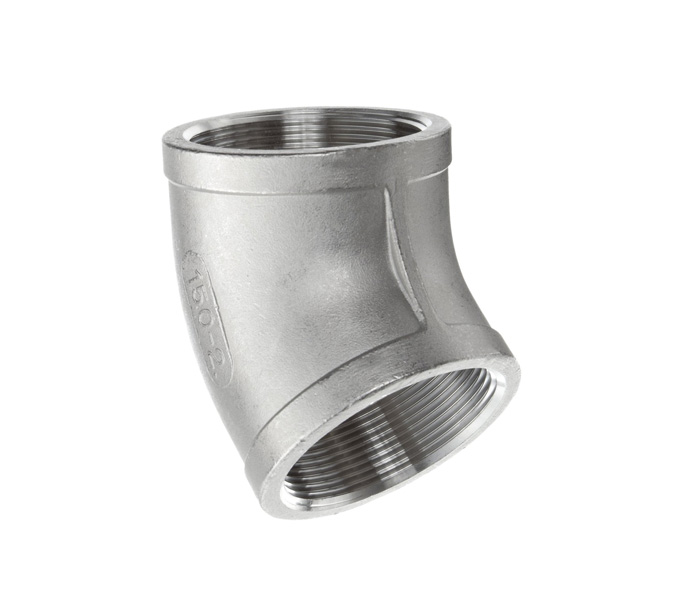

The Street Elbow 45° is a smart and space-efficient pipe fitting designed to connect a male-threaded end to a female-threaded end while changing the direction of flow by 45 degrees. Unlike standard elbows that require both ends to be female and a nipple or coupling for connection, the street elbow’s integrated male-female design simplifies installation and reduces the number of fittings needed.
Ideal for tight spaces and intricate piping layouts, the 45° angle provides a more gradual flow redirection, minimizing pressure drops and turbulence, especially in fluid and gas systems. It’s the go-to fitting for installers seeking a smooth, uninterrupted flow path with fewer components.
Product Data
Key Features
TECH-INFO
APPLICATIONS
Key Features
- Male × Female Threaded Connection : Simplifies installation by eliminating the need for extra couplings or nipples.
- Smooth 45° Flow Redirection : Offers a gradual directional change, reducing pressure loss and turbulence in flow systems.
- Compact & Space-Saving Design : Ideal for confined areas or complex piping layouts where standard elbows won’t fit.
- Thread Standards Compatibility : Available in NPT, BSPT, BSPP, and other international thread types.
- High Strength & Durability : Made from robust materials like Stainless Steel (304/316), Brass, Carbon Steel, and more.
- Wide Temperature & Pressure Tolerance : Suitable for high-pressure systems (up to 6000 PSI) and temperature extremes (−65°F to 800°F depending on material).
- Corrosion & Leak Resistance : Especially when using corrosion-resistant materials like stainless steel or nickel-plated brass.
TECH-INFO
Technical Information :
- Material Options : SS 304, SS 316, SS 316L, Brass, Carbon Steel, Copper, Gunmetal / Bronze, Custom Alloys, other material on request
- Thread Types : NPT, BSP, BSPT, BSPP, Metric Threads
- Size Range : from 1/8″ to 4″
- Working Pressure: from 150 to 300 PSI (10 to 20 bar)
- Temperature Range: -65°F to 250°F (-53°C to 121°C)
APPLICATIONS
Applications of Street Elbow 45 Degree
- Plumbing Systems
Used in residential and commercial water lines to smoothly redirect flow with minimal pressure loss. - Hydraulic & Pneumatic Systems
Essential for changing direction in high-pressure fluid and air pipelines without bulkier fittings. - HVAC Installations
Ensures efficient airflow or coolant redirection in heating, ventilation, and air conditioning systems. - Chemical & Process Industries
Handles corrosive fluids and gases while maintaining smooth directional transitions. - Oil & Gas Pipelines
Widely used in compact pipe layouts within refineries, rigs, and processing facilities. - Marine and Automotive Applications
Helps route fuel, oil, or coolant lines around tight engine spaces. - Compressed Air Systems
Reduces flow resistance and air turbulence in airline routing. - Instrumentation and Control Systems
Supports compact and precise directional changes in sensitive measuring and control piping.
