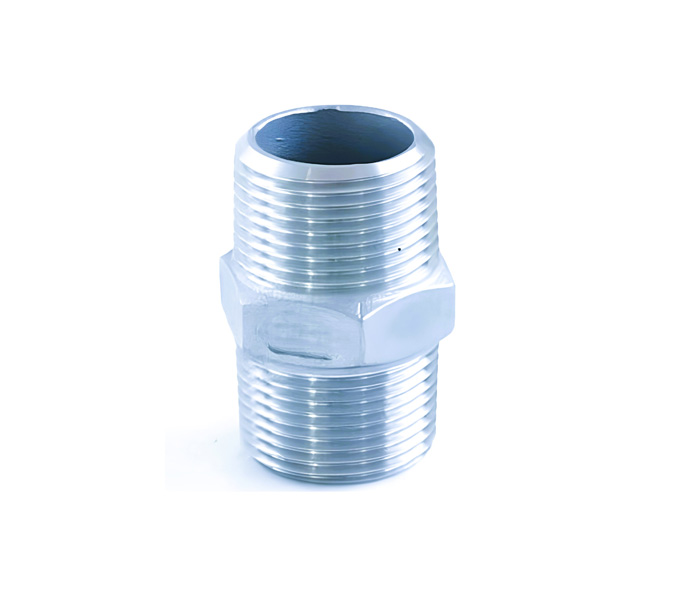

Male Hex Close Nipple is a precision-engineered pipe fitting designed for secure, compact connections between two female-threaded components. With a hexagonal center for easy wrench tightening, this nipple offers a leak-proof solution in tight spaces where minimal pipe extension is critical. It’s widely used in plumbing, instrumentation, hydraulic, and industrial piping systems, especially where space constraints and high-pressure environments demand robust, reliable performance. Available in NPT or BSP threads, Male Hex Close Nipples ensure versatility and durability in a wide range of fluid and gas transfer applications.
Features
Key Features
TECH-INFO
APPLICATIONS
Key Features
- Hex body for easy wrench tightening
- Compact design for tight-space applications
- Leak-proof threaded connections
- ️ Corrosion-resistant materials
- Withstands high-pressure and temperature
- Available in NPT and BSP threads
- Ideal for frequent assembly/disassembly
- Precision-machined for accurate fit
TECH-INFO
Technical Information :
- Material Options : SS 304, SS 316, SS 316L, Brass, Carbon Steel, Copper, Gunmetal / Bronze, Custom Alloys, other material on request
- Thread Types : NPT, BSP, BSPT, BSPP, Metric Threads
- Size Range : 1/16″ to 2″
- Working Pressure: 150 PSI to 5000 PSI
- Temperature Range: -65°F to 250°F (-54°C to +121°C)
APPLICATIONS
Applications of Male Hex Close Nipple
- Pipeline Connections: Used to join two female-threaded fittings or pipes in a straight run, especially where space is limited.
- Hydraulic & Pneumatic Systems : Ideal for connecting equipment and control components in high-pressure fluid or air lines.
- Plumbing Installations : Common in water supply lines, pumps, and plumbing fixtures for secure, leak-proof connections.
- Oil & Gas Industry : Suitable for connecting instrumentation and process lines under high pressure and temperature.
- Chemical & Petrochemical Plants : Used in corrosive environments, especially when made from stainless steel or specialty alloys.
- HVAC Systems : Facilitates tight connections in heating, ventilation, and cooling systems.
- Food & Pharmaceutical Industries : When made from sanitary-grade stainless steel, they are used in process piping and cleanroom applications.
