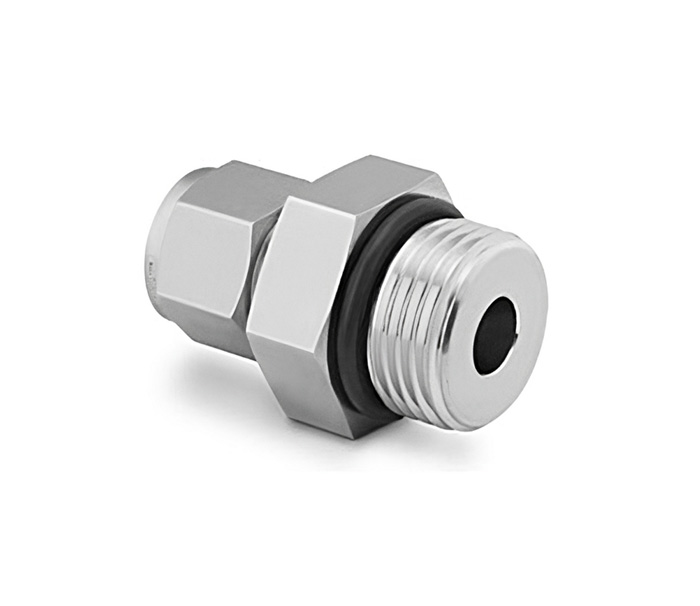

The Male Connector to SAE Straight Thread fitting is a highly reliable and precise component used for connecting tubing or piping systems to hydraulic equipment with SAE straight threads (ORB – O-Ring Boss). This type of connector is engineered to provide a secure, leak-proof seal in high-pressure and high-performance systems, making it ideal for demanding industrial, hydraulic, and mechanical applications.
Its male connection end fits standard tubing or piping, while the SAE straight thread end is designed for threaded ports with an O-ring seal. The result? A dependable, vibration-resistant connection that holds up under pressure, literally.
Whether you’re maintaining a hydraulic press, assembling a mobile equipment system, or integrating lines into heavy-duty machinery, this connector is your go-to solution for tight, efficient, and consistent performance.
Product Data
- Leak-Proof Seal
Designed to work with an O-ring (ORB) in the straight thread, ensuring a tight and reliable seal without thread deformation. - High Pressure Rating
Suitable for demanding hydraulic systems and industrial applications with high working pressures. - Durable Construction
Manufactured using robust materials like Stainless Steel (SS 304/316), Brass, or Carbon Steel for corrosion and wear resistance. - Precision Threads
Machined to SAE J1926 specifications for accurate and consistent thread engagement. - Vibration Resistance
Provides secure connections that resist loosening due to vibration or system movement.
Technical Information :
- Material Options : SS 304, SS 316, SS 316L, Brass, Carbon Steel, Copper, Gunmetal . Bronze, other material on request
- Thread Types : NPT, BSPT, BSPP, Metric Threads (on request)
- Size Range : 1/8″ to 2″ outside diameter (O.D.) for the tube
- Working Pressure: from 2000 psi to 8000 psi
- Temperature Range: -255°C to 649°C (-427°F to 1200°F)
Applications of Male Connector to SAE Straight Thread
- Hydraulic Equipment & Power Units
- Construction and Earthmoving Machinery
- Agricultural Equipment
- Mobile Hydraulic Systems
- Industrial Automation Systems
- Fluid Transfer and Control Systems
- OEM and Maintenance Applications
