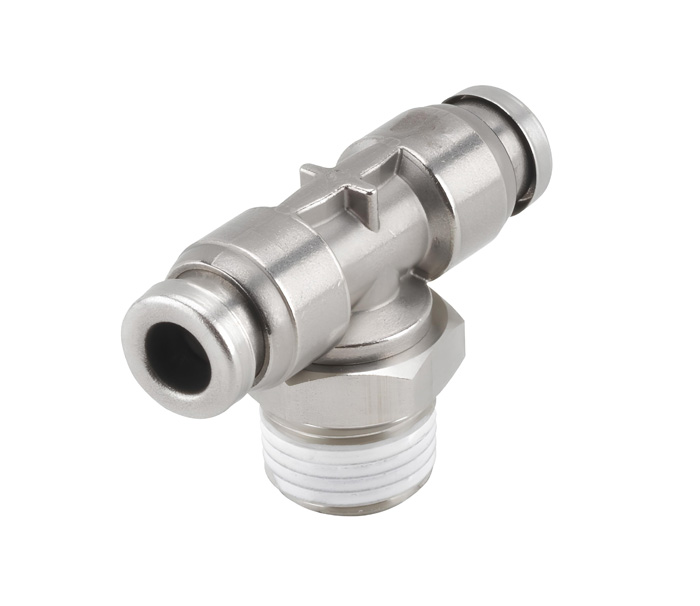

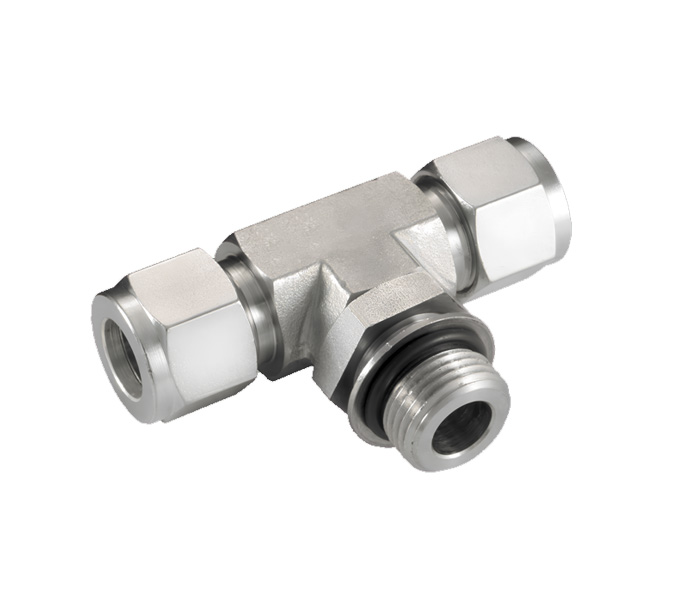

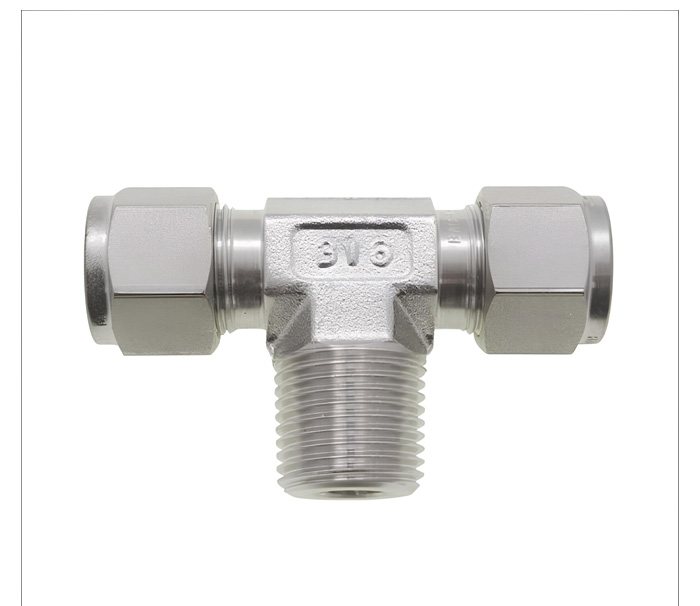

The Male Branch Tee is a smartly engineered pipe fitting designed to connect three lines, two female-threaded and one male-threaded, at a 90-degree angle. It plays a vital role in routing systems where a male-threaded outlet is required off a main line, making it a perfect choice for pressure gauges, control valves, and instrumentation setups.
What makes the Male Branch Tee stand out is its versatility and compact design. With one branch configured as a male thread, it eliminates the need for extra couplings, making installations faster, neater, and more cost-effective. It’s available in a variety of materials such as Stainless Steel (SS 304/316), Brass, Carbon Steel, and Copper alloys, allowing it to handle corrosive fluids, gases, and high-pressure applications with ease.
This fitting is commonly found in industries such as oil & gas, chemical processing, hydraulic systems, and compressed air networks, where reliability, safety, and performance are non-negotiable.
Features
Key Features
TECH-INFO
APPLICATIONS
Key Features
- Three-Way Connection
Connects two female-threaded pipes with one male-threaded branch at 90°, simplifying pipeline design. - Space-Efficient Design
Eliminates the need for additional fittings by offering a direct male-threaded outlet—ideal for tight installations. - High-Pressure Performance
Handles working pressures up to 6000 PSI (material-dependent), making it suitable for critical applications. - Wide Material Compatibility
Available in Stainless Steel (SS 304/316/316L), Brass, Carbon Steel, and Copper Alloys to suit various media and environments. - Precision Machining
Threads are accurately cut for leak-free connections and long-lasting performance. - Thread Variety
Offered in NPT, BSPT, and BSPP thread types for compatibility with global piping standards. - Corrosion & Temperature Resistance
Built to withstand corrosive environments and operate within a wide temperature range (−65°F to 800°F). - Custom Sizes Available
Standard sizes range from 1/8” to 2”, with custom solutions available upon request.
TECH-INFO
Technical Information :
- Material Options : SS 304, 316, Brass, Titanium, Carbon Steel, Inconel 600, Inconel 625, Inconel 825, Duplex 2205 and Super Duplex 32750, Monel 400, Monel 500, Hastelloy C 276, Incoloy 800 (Alloy 800) other material on request
- Thread Types : NPT
- Size Range : 1/16″ to 2″
- Working Pressure: from low-pressure applications (up to 125 PSI) to high-pressure systems (up to 10,000 PSI or more)
- Temperature Range: between 0°C and 60°C (32°F to 140°F)
APPLICATIONS
Applications of Male Branch Tee
- Instrumentation & Control Systems
Used to connect gauges, sensors, or control valves to main process lines. - Hydraulic & Pneumatic Lines
Ideal for creating male-threaded outlets in high-pressure hydraulic and air systems. - Oil & Gas Pipelines
Commonly installed in monitoring systems for pressure or flow in upstream and downstream piping. - Chemical & Petrochemical Plants
Facilitates branching in process lines handling corrosive or reactive fluids. - Compressed Air Systems
Provides easy access points for air tools, regulators, or pressure indicators. - Water Treatment Plants
Used in fluid distribution systems for branching with reliable, leak-proof connections. - Industrial Equipment Manufacturing
Incorporated into machines where compact and rugged piping assemblies are required.
