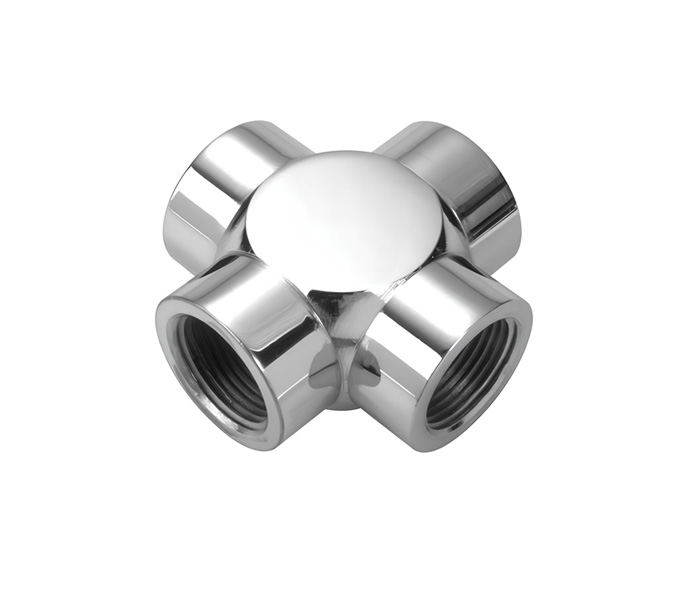

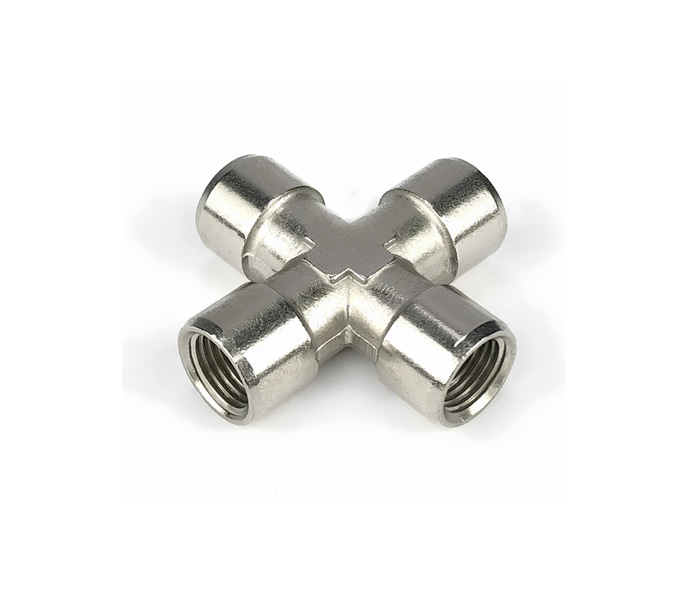

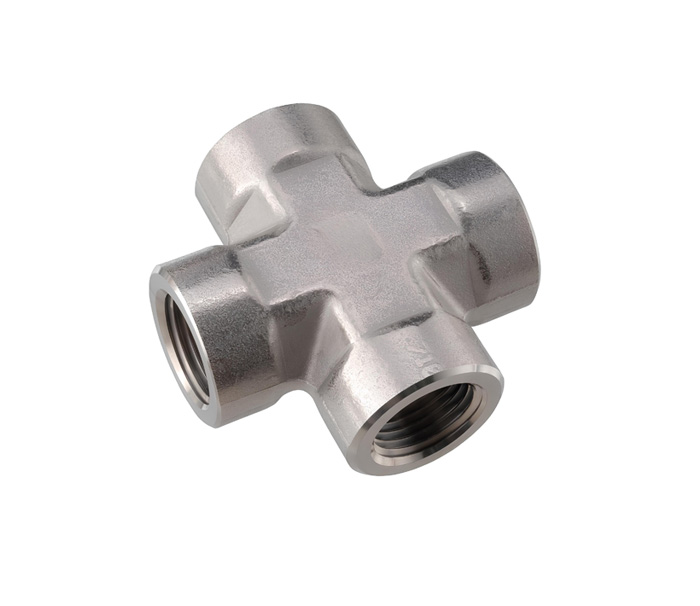

A Female Cross is a four-way pipe fitting featuring female threads on all four ends, forming a “+” shape. It is designed to interconnect four pipes at right angles in two planes, allowing fluid or gas to branch out or converge from multiple directions in a compact space. This fitting is ideal for complex piping systems where balanced flow distribution is crucial.
Product Data
Key Features
TECH-INFO
APPLICATIONS
Key Features
- Four-Way Connection
Provides a cross-shaped, 90-degree interconnection with female threads on all four ports for seamless piping integration. - High Pressure & Temperature Tolerance
Engineered to withstand pressures up to 6000 PSI (varies by material and size) and temperatures ranging from −65°F to 800°F. - Thread Standards
Available in NPT, BSPT, and BSPP threads for compatibility with global piping systems. - Corrosion Resistance
Manufactured using materials like Stainless Steel (SS 304/316), Brass, and Carbon Steel, ensuring long service life in corrosive or aggressive environments. - Precision Machined Threads
Accurate, leak-free threads help in secure assembly and efficient flow control. - Compact Design
Enables space-saving installation in tight or complex piping layouts. - Customizability
Available in various sizes (typically from 1/8” to 4”) and finishes; special material requests can be accommodated for specific industry needs. - Leak-Proof Performance
Ideal for critical applications in oil & gas, chemical processing, water treatment, and pneumatic/hydraulic systems.
TECH-INFO
Technical Information :
- Material Options : SS 304, SS 316, SS 316L, Brass, Carbon Steel, Copper, Gunmetal . Bronze, other material on request
- Thread Types : NPT, BSPT, BSPP, Metric Threads (on request)
- Size Range : from 1/8″ to 24″
- Working Pressure: from 3000 psi to 15,000 psi or even higher for specific applications
- Temperature Range: -65°F to 250°F (-53°C to 121°C)
APPLICATIONS
Applications of Female Cross
- Fluid & Gas Distribution Systems
For evenly splitting or combining flow in pipelines. - Oil & Gas Industries
Used in instrumentation and control tubing layouts. - Chemical Processing Plants
Ideal for handling aggressive or corrosive media in multiple directions. - Hydraulic & Pneumatic Circuits
Allows efficient routing of high-pressure fluids or compressed air. - Water & Wastewater Systems
Useful in treatment and supply pipelines requiring multi-way connections.
